Product Summary

The 1SMB5920BT3G is a 3 Watt Plastic Surface Mount Zener Voltage Regulator.

Parametrics

1SMB5920BT3G maximum ratings: (1)Maximum Steady State Power Dissipation @ TL = 75℃ PD 3.0 W; (2)Measured at Zero Lead Length Derate Above 75℃: 40 mW/℃; (3)Thermal Resistance from Junction-to-Lead RθJL: 25 ℃/W.

Features

1SMB5920BT3G features: (1)Zener Voltage Range - 3.3 V to 200 V; (2)ESD Rating of Class 3 (>16 kV) per Human Body Model; (3)Flat Handling Surface for Accurate Placement; (4)Package Design for Top Side or Bottom Circuit Board Mounting; (5)Pb-Free Packages are Available.

Diagrams

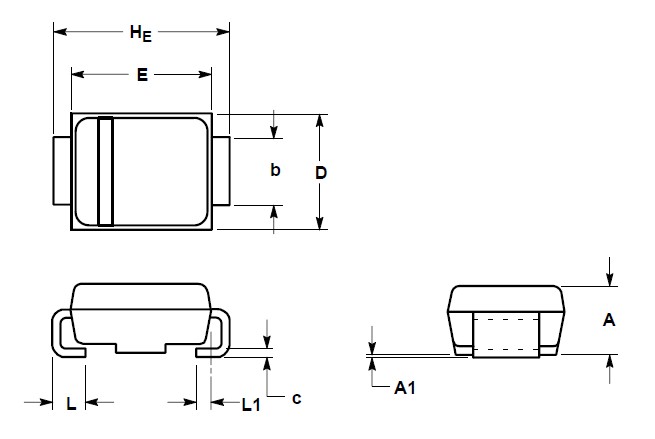

1SMB5920BT3G dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1SMB5920BT3G
1SMB5920BT3G

ON Semiconductor

Zener Diodes 6.2V 3W

Data Sheet

0-1: $0.20
1-25: $0.17
25-100: $0.11
100-500: $0.09
