Product Summary
The ES1A is a 1A Surface Mount Ultrafast Plastic Rectifier.
Parametrics
ES1J absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 50V; (2)Working Peak Reverse Voltage: 35V; (3)DC Blocking Voltage: 50V; (4)RMS Reverse Voltage:35V; (5)Average Rectified Output Current: 1.0A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method): 30A; (7)Forward Voltage: 0.95V; (8)Typical Junction Capacitance: 10pF; (9)Typical Thermal Resistance: 35K/W; (10)Operating and Storage Temperature Range: -65 to +150℃.
Features
ES1A features: (1)Glass Passivated Die Construction; (2)Ideally Suited for Automatic Assembly; (3)Low Forward Voltage Drop, High Efficiency; (4)Surge Overload Rating to 30A Peak; (5)Low Power Loss; (6)Super-Fast Recovery Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

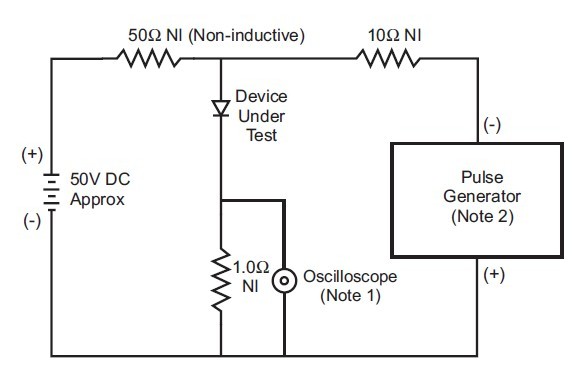

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ES1A/5AT |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
ES1AHE3/61T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 30 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
ES1A-E3/5AT |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 30 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
ES1AM |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
ES1A-T |
Micro Commercial Components (MCC) |
Rectifiers super fast 1.0A 50V |
Data Sheet |
Negotiable |
|
|||||||||||||
ES1AL |
Taiwan Semiconductor |
Rectifiers 1A 50V |
Data Sheet |
|
|
|||||||||||||
ES1A-LTP |
Micro Commercial Components (MCC) |
Rectifiers Ultra Fast 50V 1A |
Data Sheet |
|
|
|||||||||||||
ES1AHE3/5AT |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 30 Amp IFSM |
Data Sheet |
|
|
