Product Summary
The P0080SBL is a Protection Thyristor designed to protect baseband equipment such as modems, line cards, CPE and DSL from damaging overvoltage transients. The P0080SBL provides a surface mount solution that enables equipment to comply with global regulatory standards.
Parametrics
P0080SBL absolute maximum ratings: (1)Pre Heat, Temperature Min (Ts(min): 150℃; Temperature Max (Ts(max): 200℃; Time (Min to Max) (ts): 60-180 secs; (2)Average ramp up rate (Liquidus Temp (TL) to peak): 3℃/sec. Max; (3)TS(max) to TL - Ramp-up Rate: 3℃/sec. Max; (4)Reflow, Temperature (TL) (Liquidus): 217℃; Temperature (tL): 60-150 secs; (5)Peak Temp (TP): 260(+0/-5)℃; (6)Time within 5℃ of actual Peak Temp (tp): 30 secs. Max; (7)Ramp-down Rate: 6℃/sec. Max; (8)Time 25℃ to Peak Temp (TP): 8 min. Max; (9)Do not exceed: 260℃.
Features
P0080SBL features: (1)Low voltage overshoot; (2)Low on-state voltage; (3)Does not degrade with use; (4)Fails short circuit when surged in excess of ratings; (5)Low Capacitance.

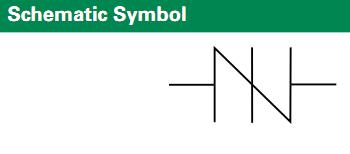

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P0080SBLRP |
Littelfuse |
Sidacs 100A 6V |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
P0080EA |
Littelfuse |
Sidacs 50A 6V |
Data Sheet |
Negotiable |
|
||||||||||||
|
P0080EAL |
Littelfuse |
Sidacs Bi 6V 50A TO92 RoHS |
Data Sheet |
|
|
||||||||||||
|
P0080EALAP |
Littelfuse |
Sidacs 6V 50A TO92 SIDACtor Bi |
Data Sheet |
|
|
||||||||||||
|
P0080EAMCL |
Littelfuse |
Sidacs 6V 50A TO92 SIDACtor Bi |
Data Sheet |
|
|
||||||||||||
|
P0080EAMCLRP1 |
Littelfuse |
Sidacs 6V 50A TO92 SIDACtor Bi |
Data Sheet |
|
|
||||||||||||
|
P0080EBLAP |
Littelfuse |
Sidacs 6V 100A TO92 SIDACtor Bi |
Data Sheet |
|
|
||||||||||||
