Product Summary

The RS1D is a 1A Surface Mount Fast Switching Rectifier. It is used in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication.

Parametrics

RS1D absolute maximum ratings: (1)Device marking code:RD; (2)Maximum repetitive peak reverse voltage:200V; (3)Maximum RMS voltage:140V; (4)Maximum DC blocking voltage:200V; (5)Maximum average forward rectified current:1.0A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load:30A; (7)Operating junction and storage temperature range:-55 to +150℃.

Features

RS1D features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Fast switching for high efficiency ; (5)High forward surge capability; (6)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (7)Solder dip 260℃, 40 s; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

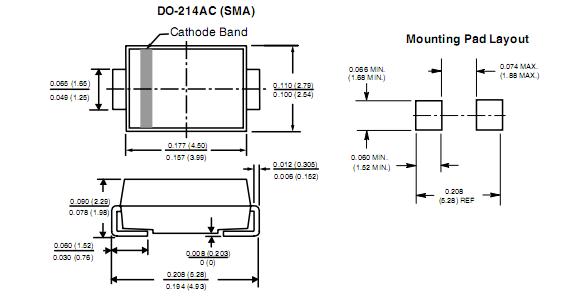

RS1D package dimensions
