Product Summary
The SMBJ150A is a 600W surface mount transient voltage suppressor. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Parametrics
SMBJ150A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform:600W ; (2)Peak forward surge current 8.3 ms single half sine-wave unidirectional only:100A ; (3)Operating junction and storage temperature range:-55 to +150℃.
Features
SMBJ150A features: (1)Glass Passivated Die Construction; (2)600W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

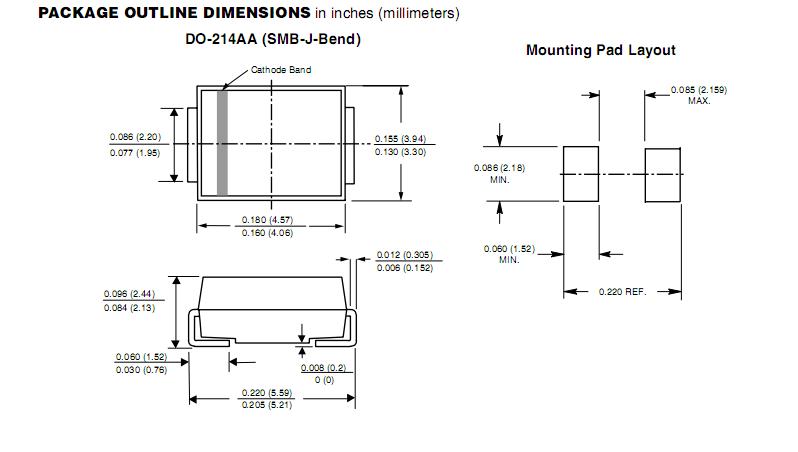

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ150A |
Fairchild Semiconductor |
TVS Diodes - Transient Voltage Suppressors 150V 600W SMB Unidirectional |
Data Sheet |
|
|
||||||||||||
 |
SMBJ150A R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 150V 600W 5% Uni |
Data Sheet |
|
|
||||||||||||
|
SMBJ150A/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 150V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ150A/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 150V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ150A/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 150V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ150A/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 150V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ150A/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 150V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ150A/5B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 150V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
