Product Summary
The RS1J is a 1A Surface Mount Fast Switching Rectifier. It is used in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication.
Parametrics
RS1J absolute maximum ratings: (1)Device marking code:RJ; (2)Maximum repetitive peak reverse voltage:600V; (3)Maximum RMS voltage:420V; (4)Maximum DC blocking voltage:600V; (5)Maximum average forward rectified current:1.0A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load:30A; (7)Operating junction and storage temperature range:-55 to +150℃.
Features
RS1J features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Fast switching for high efficiency ; (5)High forward surge capability; (6)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (7)Solder dip 260℃, 40 s; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

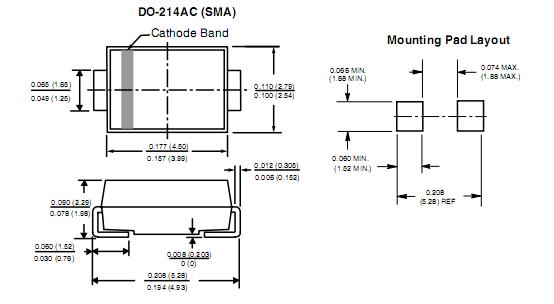

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RS1J |
Fairchild Semiconductor |
Rectifiers 600V 1a Fast Rect SMa |
Data Sheet |
|
|
||||||||||||
|
RS1J/13T |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
RS1J/2FT |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
RS1J/2GT |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
RS1J/51T |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
RS1J/5AT |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
RS1J/61T |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
RS1J/63T |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 600 Volt 1.0A 250ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
