Product Summary

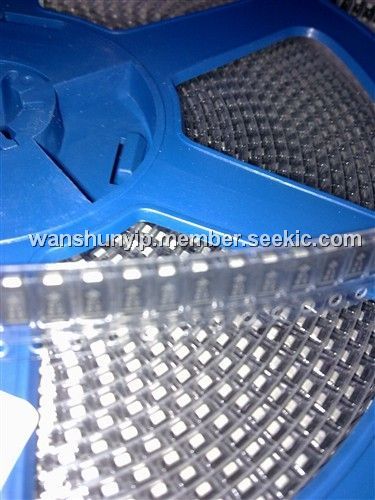

The SMAJ58A is a 400W surface mount transient voltage suppressor. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Parametrics
SMAJ58A absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform: 400 W; (2)Peak Pulse Current on 10/1000μS Waveform: 4.3 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) : 40 A; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMAJ58A features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional ; (5)400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78V); (6)Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (10)Solder dip 260℃, 40 s; (11)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

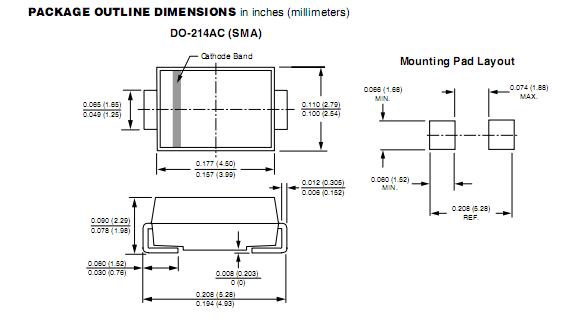

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMAJ58A |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 58Vr 400W 4.3A 5% UniDirectional |
Data Sheet |
|
|
||||||||||||||
|
SMAJ58A/11 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 58V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMAJ58A/13 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 58V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMAJ58A/61 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 58V 5% Uni |
Data Sheet |
|
|
||||||||||||||
|
SMAJ58A/63 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 58V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMAJ58A-13 |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 400W 58V |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMAJ58A-13-F |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 400W 58V |
Data Sheet |
|
|
||||||||||||||
|
SMAJ58A-7P |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 58V 400 Watts |
Data Sheet |
|
|
||||||||||||||
