Product Summary
The SMBJ20CA is a Surface Mount TRANSZORB Transient Voltage Suppressor suitable for sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Parametrics
SMBJ20CA absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform, PPPM: 600 W; (2)Peak forward surge current 8.3 ms single half sine-wave uni-directional only, IFSM: 100 A; (3)Operating junction and storage temperature range, TJ, TSTG: - 55 to + 150℃.
Features
SMBJ20CA features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %; (6) Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9) Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (10)Solder dip 260℃, 40 s; (11)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

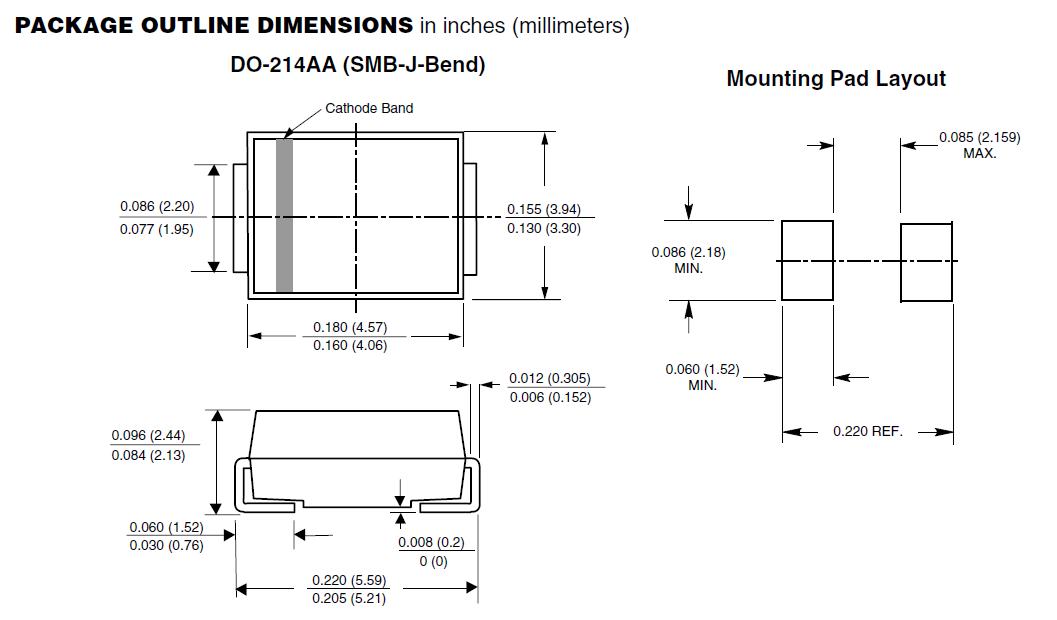

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ20CA |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 20Vr 600W 18.6A 5% BiDirectional |
Data Sheet |
|
|
||||||||||||
 |
SMBJ20CA R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 20V 600W 5% Bidir |
Data Sheet |
|
|
||||||||||||
|
SMBJ20CA/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 20V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ20CA/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 20V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ20CA/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 20V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ20CA/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 20V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ20CA_Q |
Fairchild Semiconductor |
TVS Diodes - Transient Voltage Suppressors 20V 600W SMB Bidirectional |
Data Sheet |
|
|
||||||||||||
|
SMBJ20CA-13-F |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 600W 20V |
Data Sheet |
|
|
||||||||||||
