Product Summary
The SMCJ7.5CA is a Surface Mount TRANSZORB Transient Voltage Suppressor.
Parametrics
SMCJ7.5CA absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000μs waveform: Minimum 1500 W; (2)Peak forward surge current 8.3ms single half sine-wave uni-directional only: 200A; (3)Typical thermal resistance, junction to ambient: 75℃/W; (4)Typical thermal resistance, junction to lead: 15℃/W; (5)Operating junction and storage temperature range:–55 to +150℃.
Features
SMCJ7.5CA features: (1)Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop Circuit Protection; (2)Low profile package with built-in strain relief for surface mounted applications; (3)Glass passivated junction; (4)Low incremental surge resistance, excellent clamping capability ; (5)1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%; (6)Very fast response time; (7)High temperature soldering guaranteed: 250℃/10 seconds at terminals.

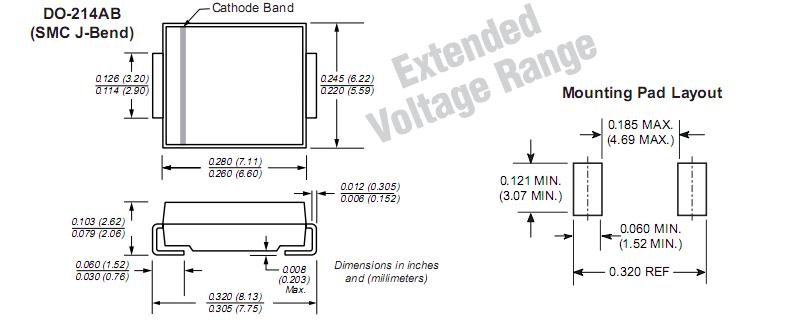

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMCJ7.5CA |
Bourns |
TVS Diodes - Transient Voltage Suppressors 7.5volts 100uA 116.3 Amps Bi-Dir |
Data Sheet |
|
|
|||||||||||||
SMCJ7.5CA/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 7.5V Bidirect |
Data Sheet |
Negotiable |
|
|||||||||||||
SMCJ7.5CA/7T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 7.5V Bidirect |
Data Sheet |
|
|
|||||||||||||
SMCJ7.5CA/9AT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 7.5V Bidirect |
Data Sheet |
Negotiable |
|
|||||||||||||
SMCJ7.5CA/59T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 7.5V Bidirect |
Data Sheet |
Negotiable |
|
|||||||||||||
SMCJ7.5CA-13 |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 1500W 7.5V |
Data Sheet |
Negotiable |
|
|||||||||||||
SMCJ7.5CA-E3/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 7.5V Bidirect |
Data Sheet |
|
|
|||||||||||||
SMCJ7.5CA-7P |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 7.5V 1500 Watts |
Data Sheet |
|
|
