Product Summary

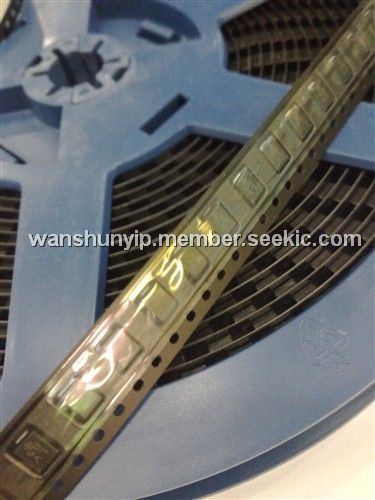

The SMBJ6.8CA is a Transient suppression diode. It is suitable for sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Features
SMBJ6.8CA features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V); (6)Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (10)Solder dip 260 ℃, 40s; (11)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
 |
