SMCJ36CA

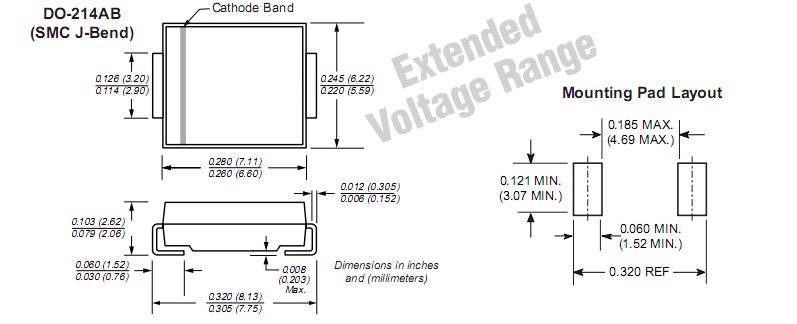

Surface Mount, TRANSZORB Transient Voltage Suppressor, 1500W, 36V, SMC, DO-214AB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.07 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.06~0.07

PartNumber:: SMCJ36CA

Brand:: Vishay Siliconix - Vishay | Pack: DO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Keyanyun's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-03

From Other Seller

Part Number:SMCJ36CA
US $0.06 - 0.07
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SMCJ36CA is a Surface Mount TRANSZORB Transient Voltage Suppressor.

Parametrics

SMCJ36CA absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000μs waveform: Minimum 1500 W; (2)Peak forward surge current 8.3ms single half sine-wave uni-directional only: 200A; (3)Typical thermal resistance, junction to ambient: 75℃/W; (4)Typical thermal resistance, junction to lead: 15℃/W; (5)Operating junction and storage temperature range:–55 to +150℃.

Features

SMCJ36CA features: (1)Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop Circuit Protection; (2)Low profile package with built-in strain relief for surface mounted applications; (3)Glass passivated junction; (4)Low incremental surge resistance, excellent clamping capability ; (5)1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%; (6)Very fast response time; (7)High temperature soldering guaranteed: 250℃/10 seconds at terminals.
