Product Summary
The SMCJ5.0A is a Surface Mount TRANSZORB Transient Voltage Suppressor.
Parametrics
SMCJ5.0A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000μs waveform: Minimum 1500 W; (2)Peak forward surge current 8.3ms single half sine-wave uni-directional only: 200A; (3)Typical thermal resistance, junction to ambient: 75℃/W; (4)Typical thermal resistance, junction to lead: 15℃/W; (5)Operating junction and storage temperature range:–55 to +150℃.
Features
SMCJ5.0A features: (1)Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop Circuit Protection; (2)Low profile package with built-in strain relief for surface mounted applications; (3)Glass passivated junction; (4)Low incremental surge resistance, excellent clamping capability ; (5)1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%; (6)Very fast response time; (7)High temperature soldering guaranteed: 250℃/10 seconds at terminals.

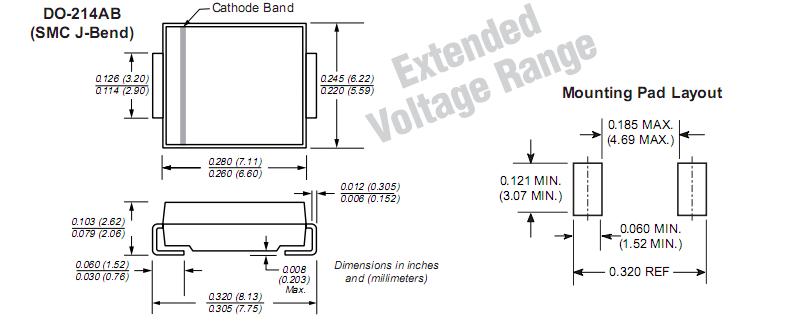

Diagrams
