Product Summary

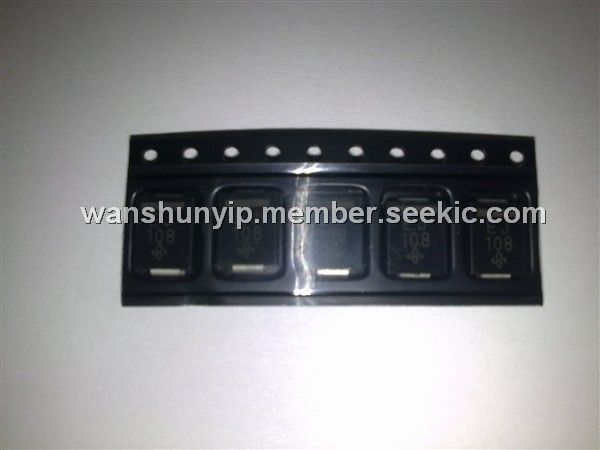

The ES1J is a 1A Surface Mount Super Fast Rectifier.

Parametrics

ES1J absolute maximum ratings: (1)Peak Repetitive Reverse Voltage:600V; (2)Working Peak Reverse Voltage:600V; (3)DC Blocking Voltage:600V; (4)RMS Reverse Voltage:420V; (5)Average Rectified Output Current:1.0A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method):30A; (7)Forward Voltage:1.7V; (8)Typical Junction Capacitance:10pF; (9)Typical Thermal Resistance:35K/W; (10)Operating and Storage Temperature Range:-65 to +150℃.

Features

ES1J features: (1)Glass Passivated Die Construction; (2)Ideally Suited for Automatic Assembly; (3)Low Forward Voltage Drop, High Efficiency; (4)Surge Overload Rating to 30A Peak; (5)Low Power Loss; (6)Super-Fast Recovery Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

Diagrams

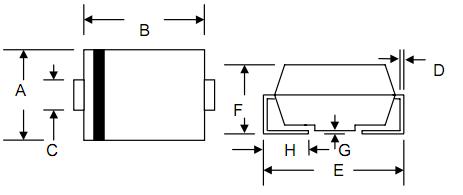

ES1J package dimensions
