Product Summary
The TB3100M-13-F is a 50A bi-directional surface mount thyristor surge protective device.
Parametrics
TB3100M-13-F absolute maximum ratings: (1)Non-Repetitive Peak Impulse Current @10/1000us, Ipp: 50 A; (2)Non-Repetitive Peak On-State Current @8.3ms (one-half cycle), ITSM: 30 A; (3)Junction Temperature Range, Tj: -40 to +150℃; (4)Storage Temperature Range, TSTG: -55 to +150℃; (5)Thermal Resistance, Junction to Lead, RθJL: 20℃/W; (6)Thermal Resistance, Junction to Ambient, RθJA: 100℃/W; (7)Typical Positive Temperature Coefficient for Breakdown Voltage, VBR/Tj: 0.1 %/℃.
Features
TB3100M-13-F features: (1)50A Peak Pulse Current @ 10/1000μs; (2)250A Peak Pulse Current @ 8/20μs; (3)58 - 320V Stand-Off Voltages; (4)Oxide-Glass Passivated Junction; (5)Bi-Directional Protection In a Single Device; (6)High Off-State impedance and Low On-State Voltage; (7)Helps Equipment Meet GR-1089-CORE, IEC 61000-4-5, FCC Part 68, ITU-T K.20/K.21, and UL497B; (8)UL Listed Under Recognized Component Index, File Number 156346; (9)Lead Free Finish/RoHS Compliant.

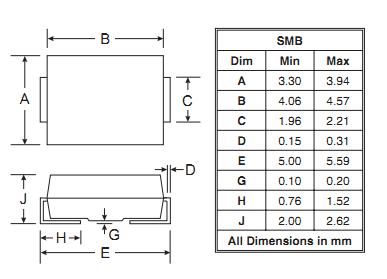

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

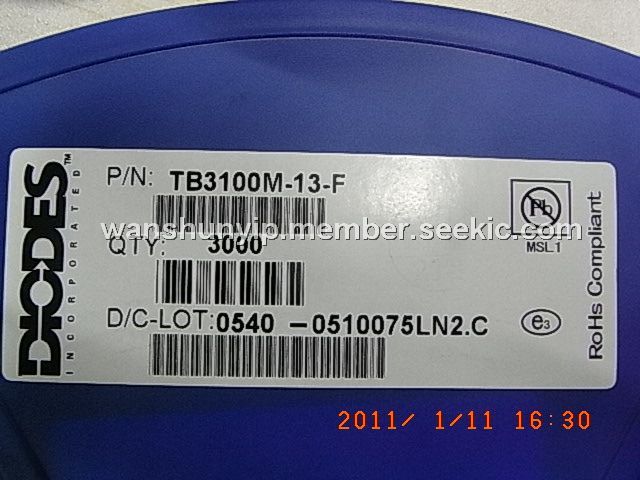

 TB3100M-13-F |
Diodes Inc. |
Sidacs 50A 275V |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
TB3100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TB3100H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TB3100H-13 |
Diodes Inc. |
Sidacs 275V 100A |
Data Sheet |
Negotiable |
|
||||||||||||
|
TB3100H-13-F |
Diodes Inc. |
Sidacs 275V 100A |
Data Sheet |
|
|
||||||||||||
|
TB3100L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TB3100L-13 |
Diodes Inc. |
Sidacs 30A 275V |
Data Sheet |
Negotiable |
|
||||||||||||
