Product Summary

The SMBJ200CA is a 600W Surface Mount Transient Voltage Supressor.

Parametrics

SMBJ200CA absolute maximum ratings: (1)Peak pulse power Dissipation on 10/1000μs waveform (note 1,2, FIG.1): 600W; (2)Peak pulse current of on 10\1000μs waveform (note 1, FIG.3): SEE TABLE 1; (3)Peak forward Surge Current, 8.3ms Single Half SIne Wave Superimposed on Rated Load, (JEDEC Method) (note 2.3): 100A; (4)Operating junction and Storage Temperature Range: -55 to +150℃.

Features

SMBJ200CA features: (1)For surface mounted applications in order to optimize board space; (2)Low profile package; (3)Built-in strain relief; (4)Glass passivated junction; (5)Low inductance; (6)Excellent clamping capability; (7)Repetition Rate (duty cycle): 0.01%; (8)Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional types; (9)Typical IR less than 1 mA above 10V; (10)High Temperature soldering: 250℃/10 seconds at terminals; (11)Plastic packages has Underwriters Laboratory Flammability 94V-O.

Diagrams

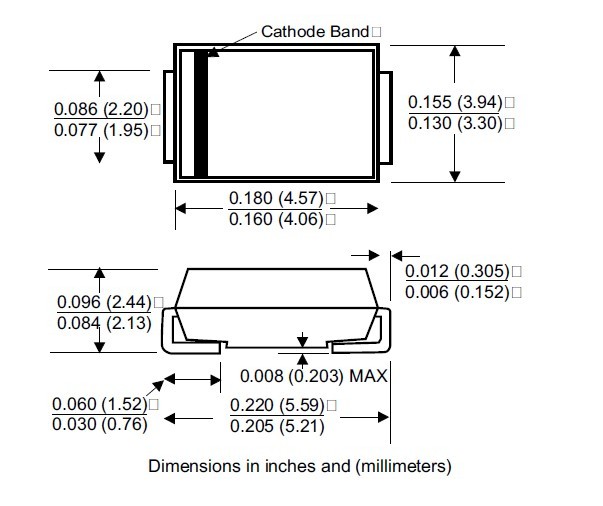

SMBJ200CA dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SMBJ200CA
SMBJ200CA
Littelfuse
TVS Diodes - Transient Voltage Suppressors 200Vr 600W 1.9A 5% BiDirectional
Data Sheet
0-1: $0.32
1-25: $0.29
25-100: $0.25
100-250: $0.22
