SMAJ33A

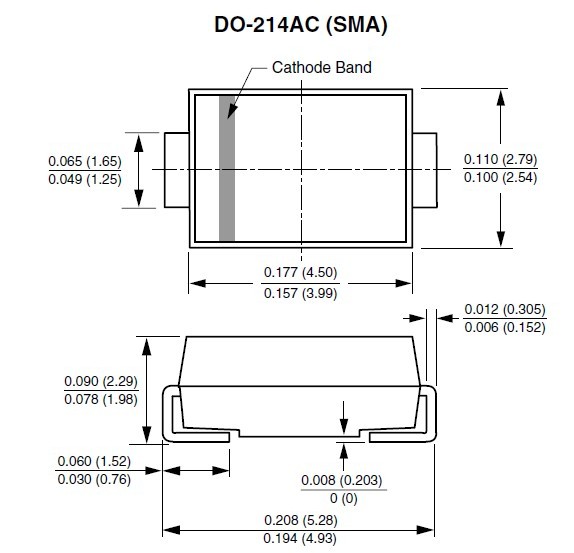

400W, 33V, 5%, SMA, Surface Mount, Transient Voltage Suppressors, DO214

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.03~0.04 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.03~0.04

PartNumber:: SMAJ33A

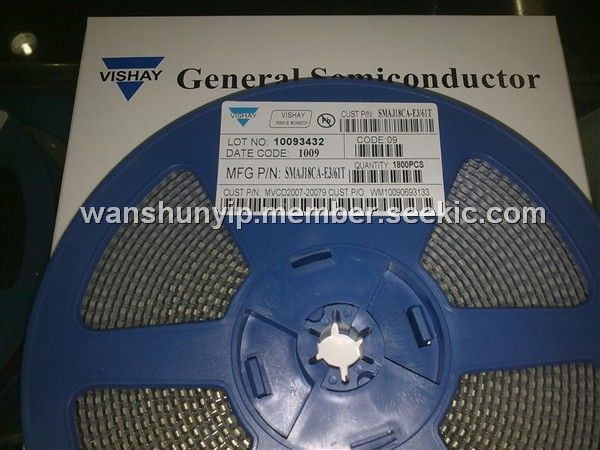

Brand:: Vishay Siliconix - Vishay | Pack: DO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Keyanyun's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-06

From Other Seller

Part Number:SMAJ33A
US $0.03 - 0.04
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SMAJ33A is a surface mount transient voltage suppressor.

Parametrics

SMAJ33A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform, PPPM: 400 W; (2)Peak pulse current with a waveform, IPPM: See next table A; (3)Peak forward surge current 8.3 ms single half sine-wave uni-directional only, IFSM: 40 A; (4)Operating junction and storage temperature range: - 55 to + 150 ℃.

Features

SMAJ33A features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V); (6)Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃; (10)Solder dip 260 ℃, 40 s; (11)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
