Product Summary

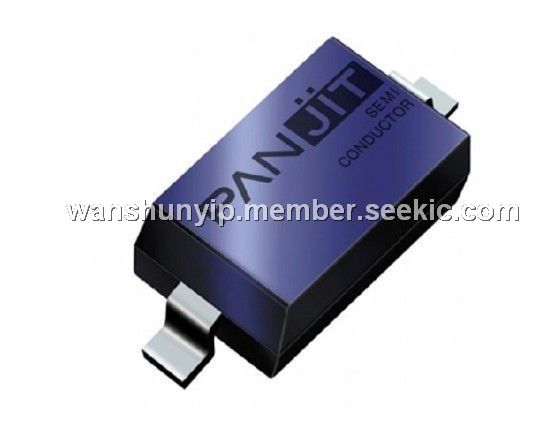

The PJDLC05 is an ultra low capacitance single transient overvoltage suppressor for high speed data lines. The applications of the PJDLC05 are: (1)Mobile Phones; (2)Universal Serial Bus (USB 1.1 and USB 2.0) Applications; (3)MP3 Players; (4)Digital Camcorders; (5)Digital Cameras; (6)Ethernet 10,100 and 1000 Base Port Protection.
Parametrics
PJDLC05 absolute maximum ratings: (1)Peak Pulse Power 8x20μsec Waveform P PK: 400 W; (2)Peak Pulse Current 8x20μsec Waveform I PP: 17 A; (3)ESD Voltage (HBM) V ESD: >25 kV; (4)Operating Temperature TL: -50 to +125 ℃; (5)Storage Temperature T stg: -50 to +150 ℃.
Features
PJDLC05 features: (1)Improved Leakage Current, Maximum of 5 uA @ 5Vdc; (2)Maximum Capacitance @ 0Vdc Bias of 1.2 pF between terminals 1-3 or terminals 2-3; (3)IEC61000-4-2 ESD 15kV Air, 8kV Contact Compliance; (4)IEC61000-4-5 Lightning 17Amps peak, 8x20μsec Waveform.
