Product Summary

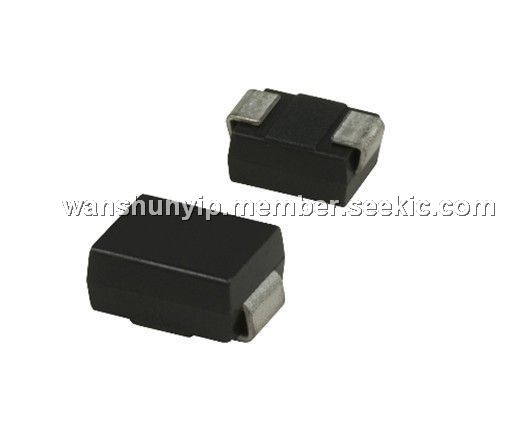

The SMBJ12A is a 600W surface mount transient voltage suppressor.
Parametrics
SMBJ12A absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform (Note 1, 2)Figure 3: 600 Minimum W; (2)Peak Pulse Current on 10/1000μS Waveform (Note 1) Figure 4: See Table 1 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) (Note 2, 3): 100 A; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMBJ12A features: (1)Glass Passivated Die Construction; (2)600W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

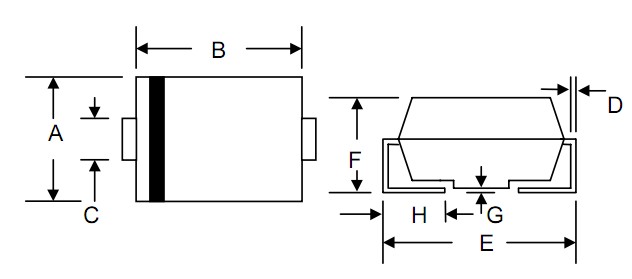

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ12A R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 12V 600W 5% Uni |
Data Sheet |
|
|
||||||||||||||
 |
SMBJ12A/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 12V 5% Uni |
Data Sheet |
|
|
||||||||||||||
|
SMBJ12A_Q |
Fairchild Semiconductor |
TVS Diodes - Transient Voltage Suppressors 12V 600W SMB Unidirectional |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMBJ12A822 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMBJ12A-E3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 12V 5% Uni |
Data Sheet |
|
|
||||||||||||||
|
SMBJ12A-TR |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 600W 12V Unidirect |
Data Sheet |
|
|
||||||||||||||
|
SMBJ12AHE3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 12V 5% Unidir |
Data Sheet |
|
|
||||||||||||||
|
SMBJ12AHE3/55 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 12V 5% Unidir |
Data Sheet |
