Product Summary

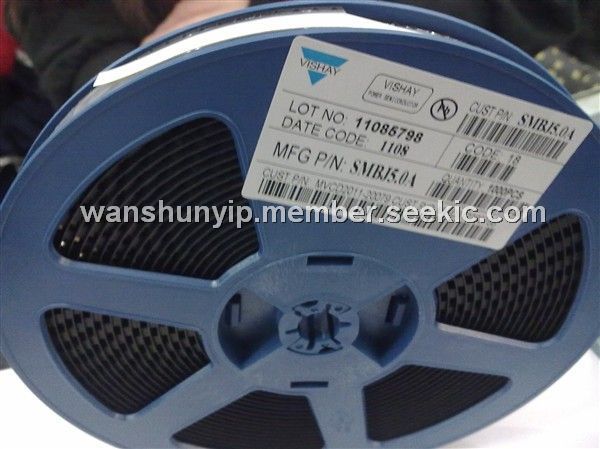

The SMBJ5.0A is a 600W surface mount transient voltage suppressor. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Parametrics
SMBJ5.0A absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform: 600 Minimum W; (2)Peak Pulse Current on 10/1000μS Waveform: 1 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) : 100 A; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMBJ5.0A features: (1)Glass Passivated Die Construction; (2)600W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

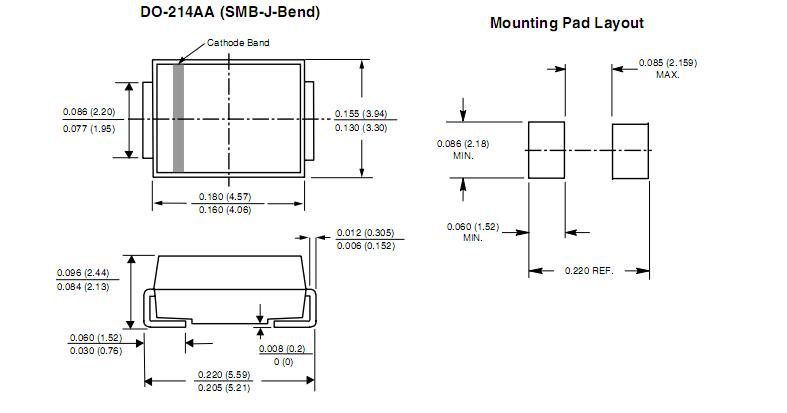

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ5.0A |
AVX |
TVS Diodes - Transient Voltage Suppressors 5volts 600watts UniDirectional |
Data Sheet |
|
|
||||||||||||
 |
SMBJ5.0A R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 5.0V 600W 5% Uni |
Data Sheet |
|
|
||||||||||||
|
SMBJ5.0A/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ5.0A/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ5.0A/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ5.0A/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ5.0A-13-F |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V |
Data Sheet |
|
|
||||||||||||
|
SMBJ5.0A-7P |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 5V 600 Watts |
Data Sheet |
Negotiable |
|
||||||||||||
