SMBJ170A

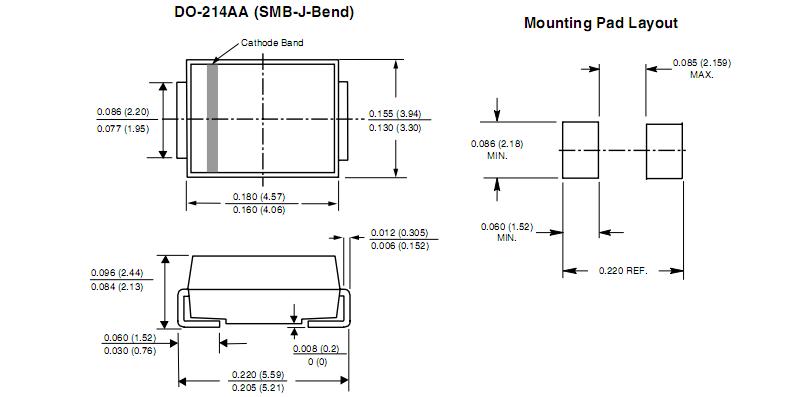

600W, surface mount, bidirectional transient voltage suppressor, 170V, 5%, DO-214AA/SMB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.04~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.04~0.05

PartNumber:: SMBJ170A

Brand:: Vishay Siliconix - Vishay | Pack: DO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Keyanyun's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:SMBJ170A
US $0.04 - 0.05
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SMBJ170A is a 600W surface mount transient voltage suppressor. SMBJ170A is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.

Parametrics

SMBJ170A absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform: 600 Minimum W; (2)Peak Pulse Current on 10/1000μS Waveform: 1 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) : 100 A; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.

Features

SMBJ170A features: (1)Glass Passivated Die Construction; (2)600W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.
